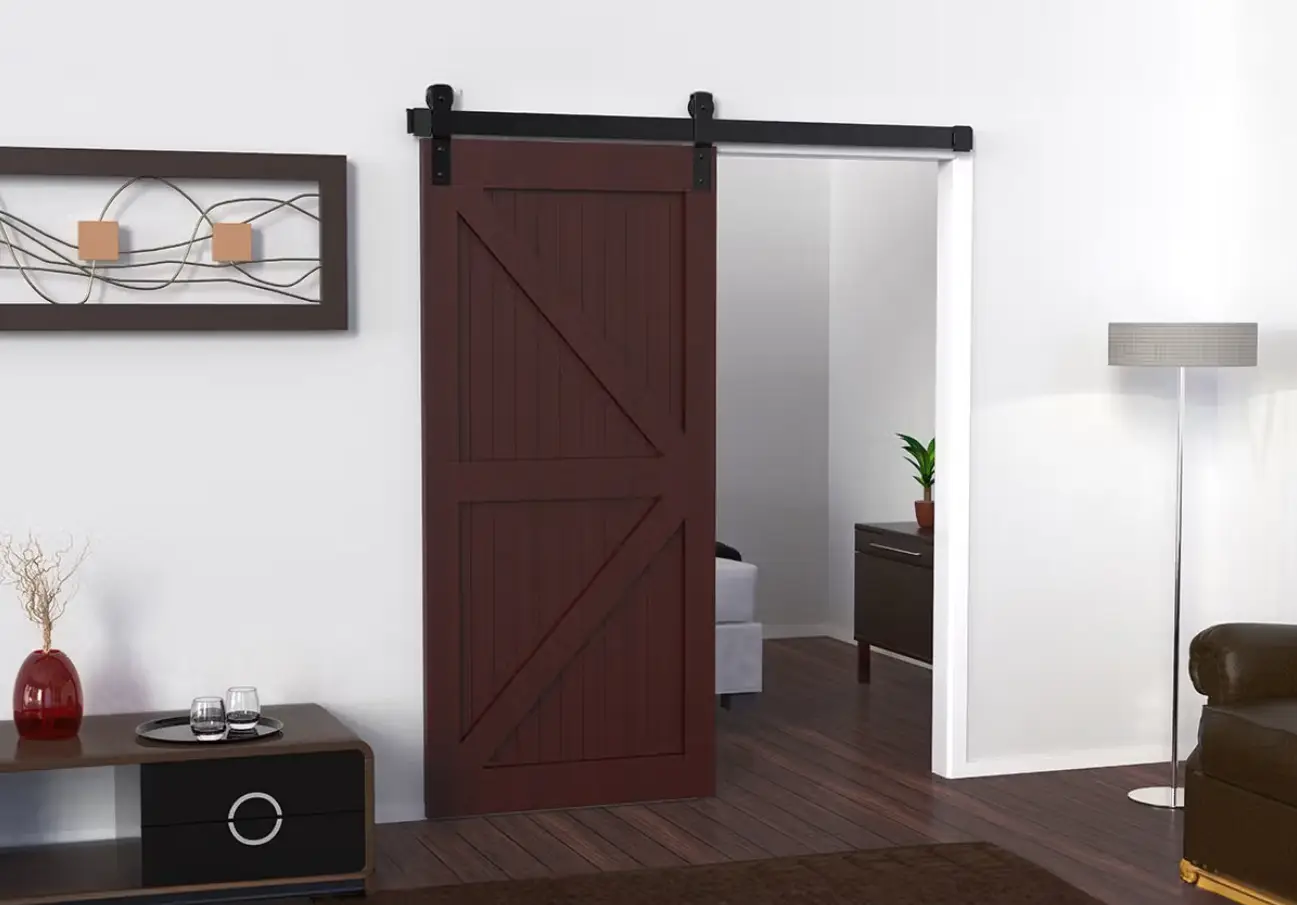

Cavity Slider CaviTrack Barn Door Track

• The track is high-quality, heavy-duty extruded aluminum.
• Track can be easily adjusted to allow for different wall clearances with baseboard & moulding.
• No exposed fasteners provide a clean look.
• Ultra smooth running acetal wheels.
• Pre-machined mounting holes. Additional holes can be drilled on-site to match studs.
• Anti-jump system ensures wheels cannot jump off the track.
• Available with SofStop® 264lb soft close/soft open kit (suitable for retrofit). The minimum recommended door width is 32″

Track Finish: Black Anodized

Maximum Weight Per Track: 650 lb (300kg)

Maximum Door Weight: 400 lb* (180kg) (*Doors over 400 lb require extra hangers or a customized solution), 264 lb with SofStop

Minimum Door Thickness: 1-1/4″ (32mm)

Track Lengths: 6′, 7′, 8′, 9′, 10′, 13′, 14′, 15′, 16′, 17′, 18′ and 19’ pre-cut lengths

How to order:

Step 1. Determine Door Width: Generally, your track length should be twice your door width.

Step 2. Select Track Length: Multiply your door width by two. Choose from pre-cut lengths: 6′, 7′, 8′, 9′, 10′, 13′, 14′, 15′, 16′, 17′, 18′ and 19’. Tracks can be cut down for custom widths.

Step 3. Determine Overall Thickness: This track system is available with either a Narrow or Wide track bracket, which must be specified when placing your order. The bracket can be adjusted to suit an overall thickness of door + gap + moulding of:
1-5/8” to 2-3/8” (40 – 61mm) (Narrow option) or
2-3/8” to 3-1/8” (62 – 80mm) (Wide option).

Step 4. Select Hanger Pack: Choose one pack per door. Each pack includes carriages, mounting plates, T-Guide, screws, and an adjusting wrench.
For standard operation, select standard CS Barn Door Hangers & Stops Pack.

For SofStop, select two SofStop Single Packs. The SofStop system supports a maximum door weight of 264 lbs and requires a minimum door width of 24 inches.
